The GEBHARDT plug-in box
Simple and quick assembly in 2 minutes without nails and screws – for flexible solutions!
The GEBHARDT plug-in box
We offer an innovative solution that allows you to transport and store cargo easily, safely and efficiently. The GEBHARDT plug-in box can be assembled into an export-ready box within a few minutes. Due to the simple plug-in system, optimal, ergonomic loading from the front or the side is possible. The structure of the pallet and the design of the inside of the box are designed customer-specifically, depending on the load. Find out more about our solutions and how they can solve your logistical challenges.
Ihr Nutzen auf einen Blick
- Quick assembly and disassembly
- Space-saving transportation
- No export restrictions
- Optimum, ergonomic loading of the crate from the front or the side
- Tested load capacity
- Heat treated according to IPPC

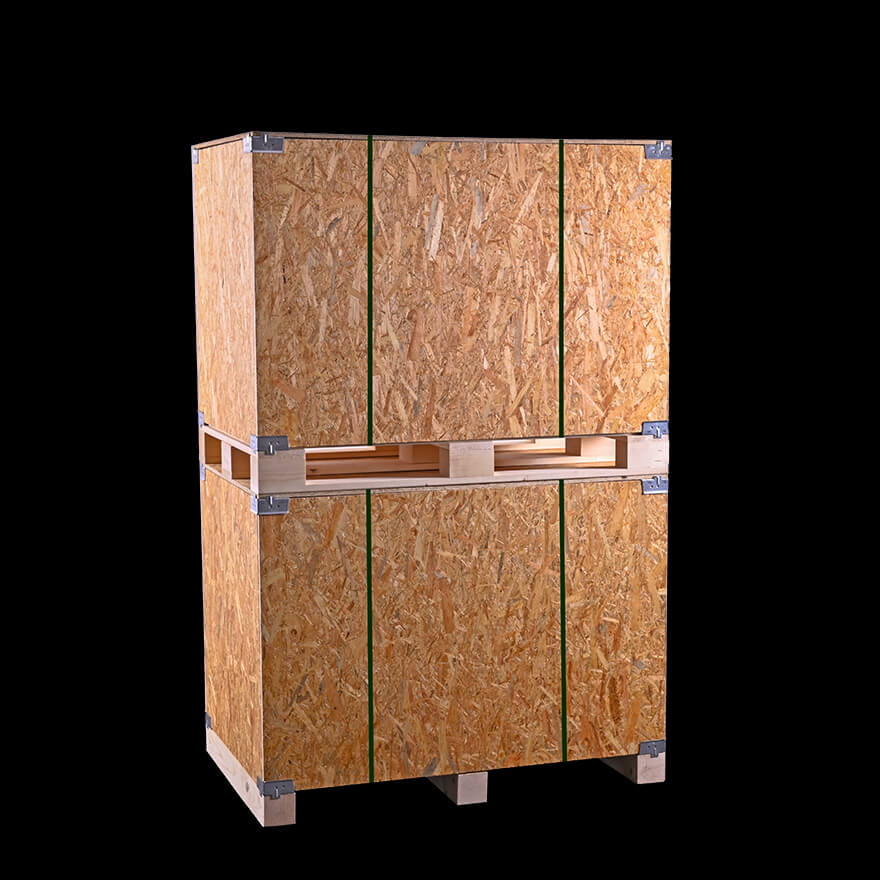

- Stackable
- Panel material in thickness 12mm or 15mm possible
- Two-sided and four-sided retractable
Efficient shipping and export solution
With the GEBHARDT storage box you can pack your cargo quickly and easily!
The boxes are designed so that they can be set up within 2 minutes including strapping. The well thought-out corner connectors not only enable a self-explanatory and almost tool-free assembly, but also ensure sufficient stability so that additional stiffeners and fasteners are not required. Optimize your shipping logistics and reduce packaging times and costs. The necessary export regulations such as ISPM 15 and PEFC are of course met. Convince yourself of our boxes and contact us for more information.
- Cost and time-saving export solution
- Simple self-assembly
Optimum product protection
Do you have sensitive goods and want to optimally protect them from damage?
As a specialist for all types of load carriers, we design the perfect interior for your shipping boxes. Regardless of whether it is valuable mechanical components, assemblies or other goods, we will find a solution. The combination of optimal product protection and maximum packing density significantly reduces your costs. Find out more about our packaging solutions, we will be happy to advise you!
- Individual adaptation to your wishes
- Optimum protection
Setup of the GEBHARDT plug-in box
Fast and efficient assembly in under 2 minutes!

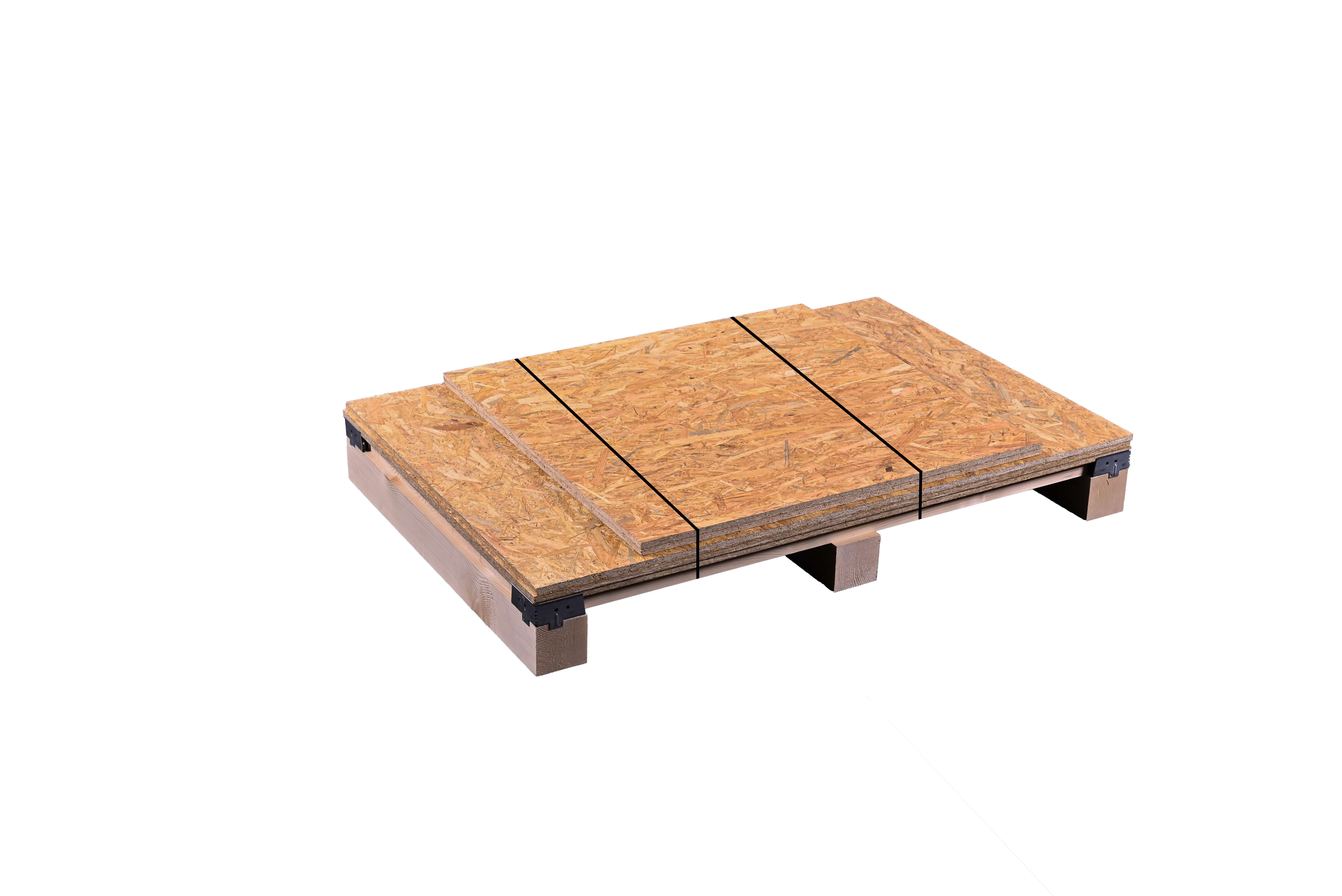

Delivery of individual components according to the customer process

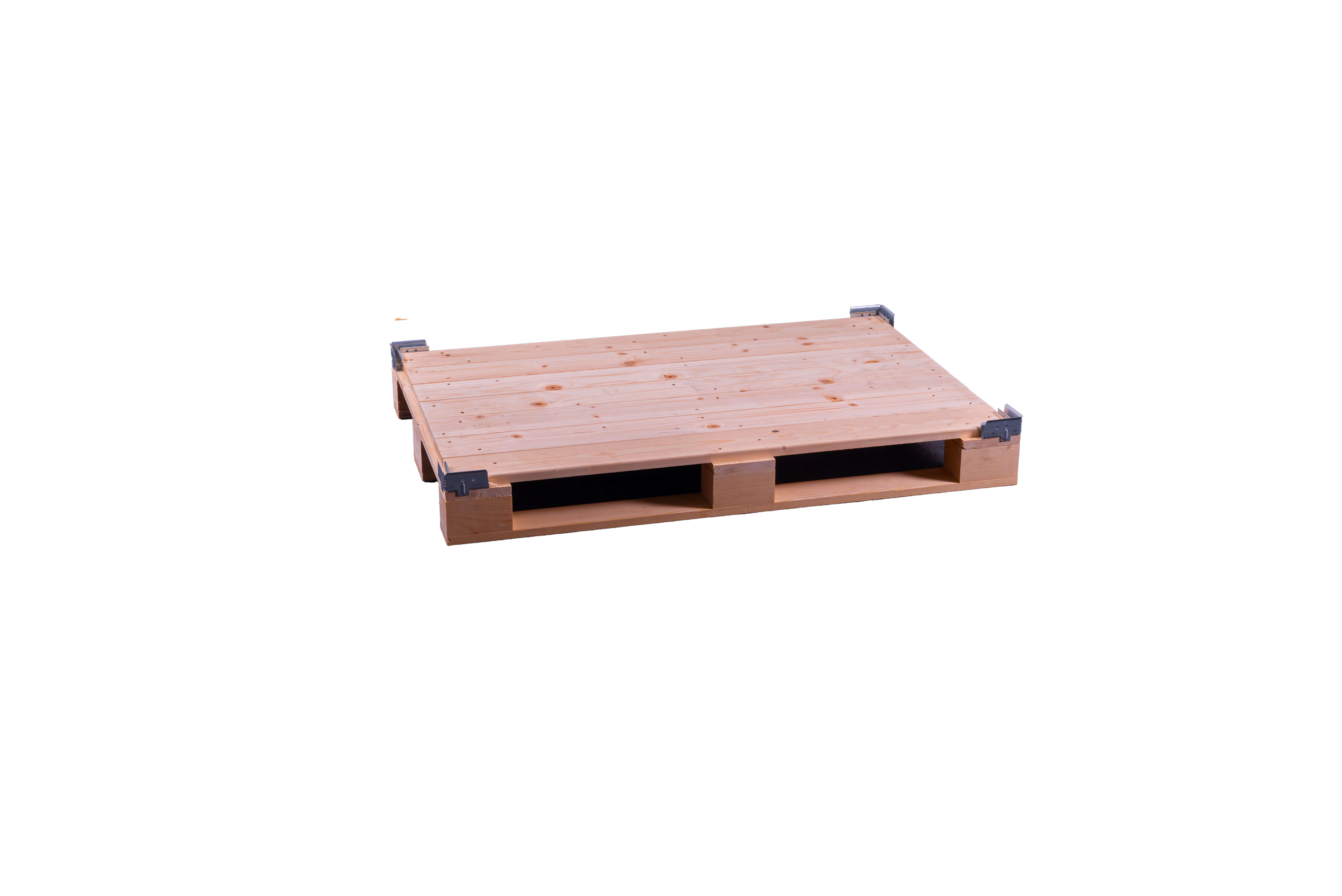

Prepare the pallet

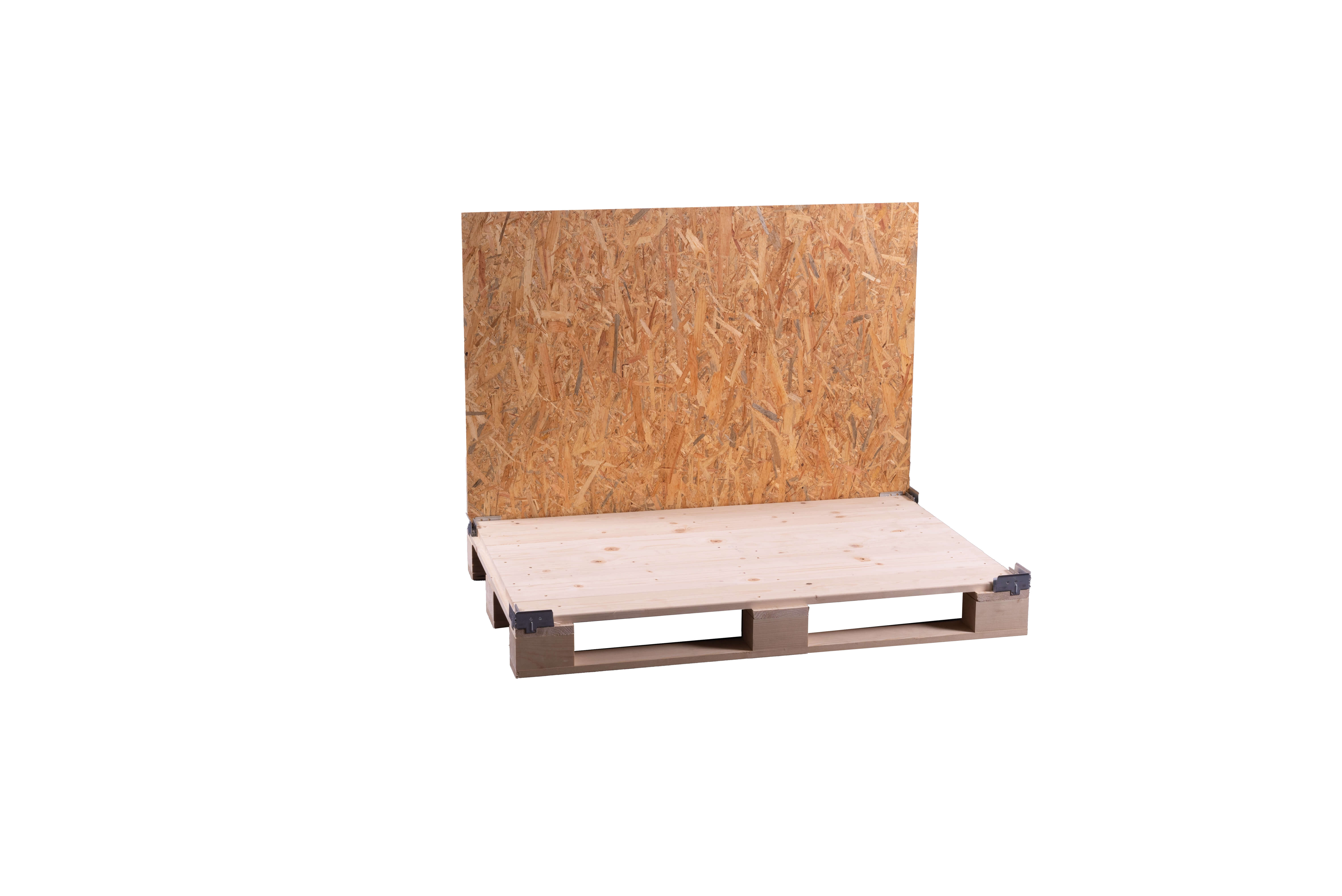

Insert the first side panel

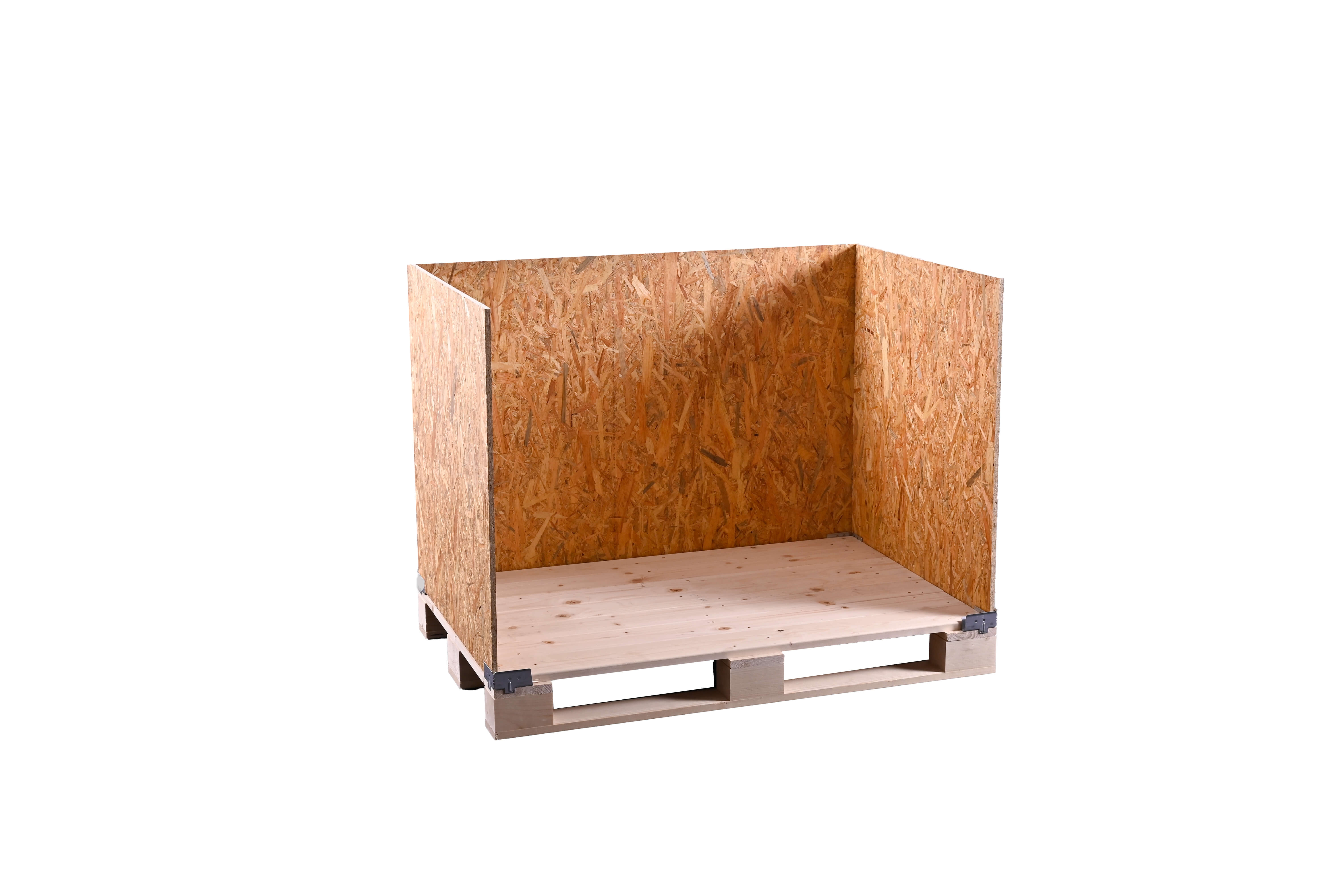

Insert additional side panels

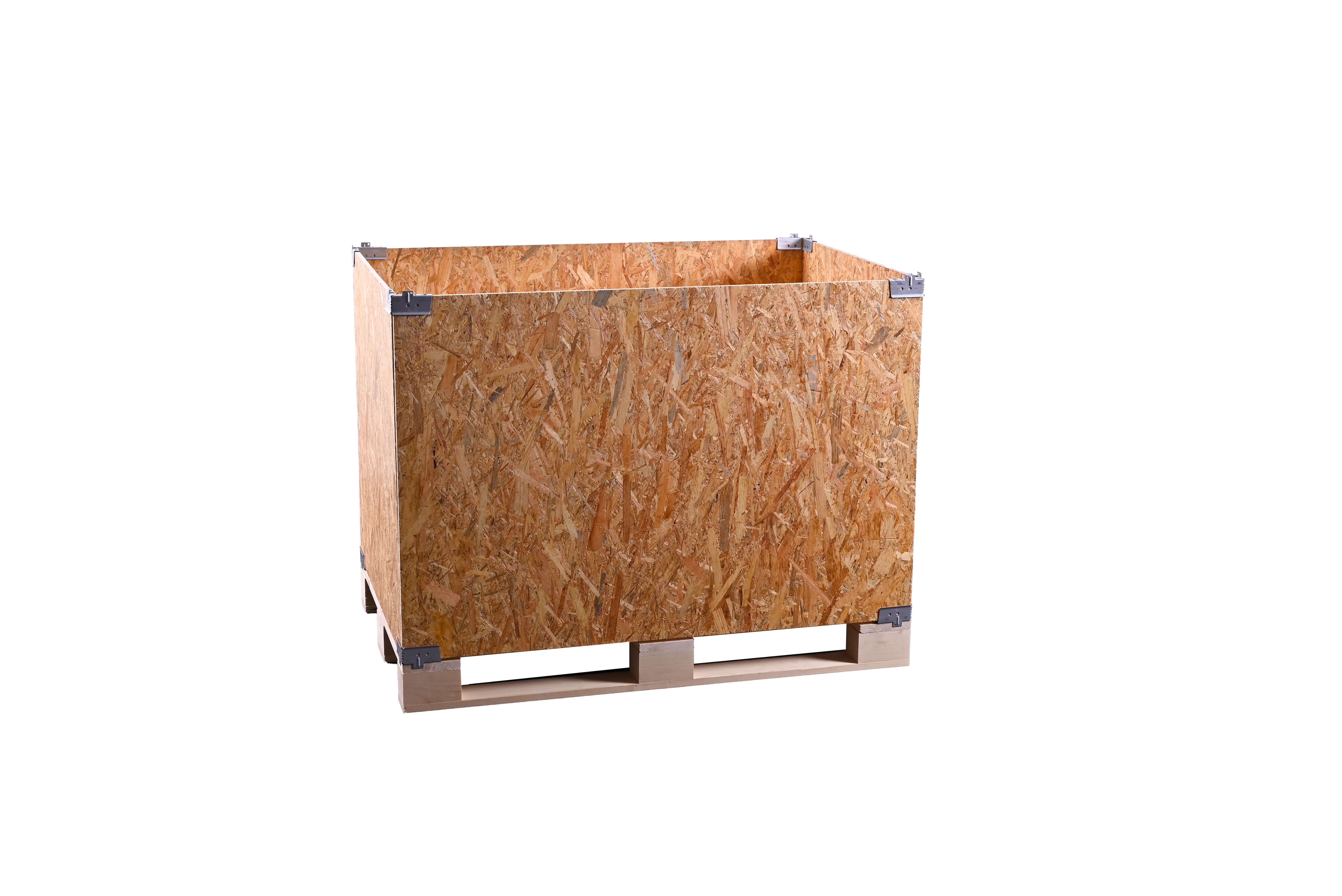

Equipp all side panels with corner elements

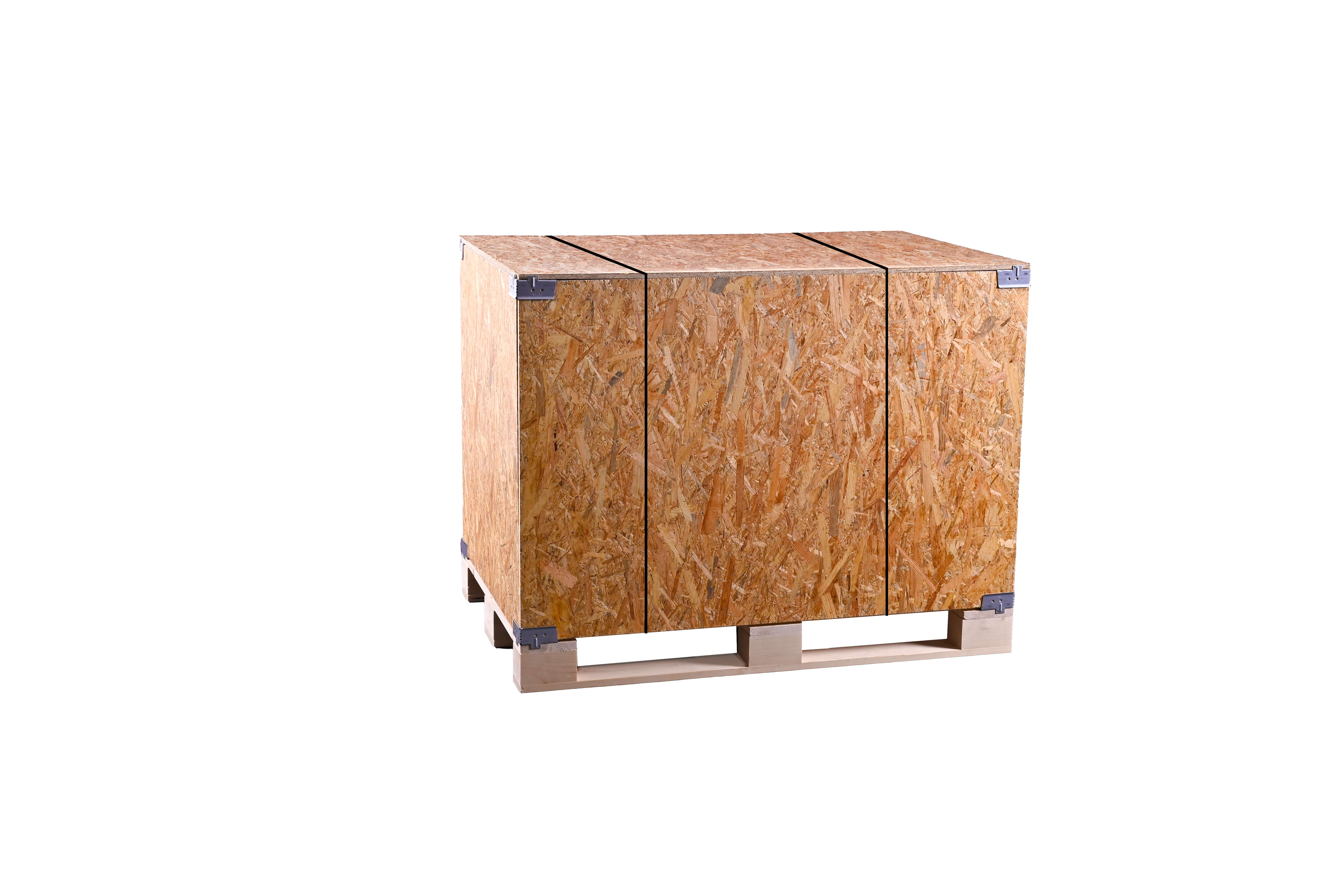

Cover and strap the box

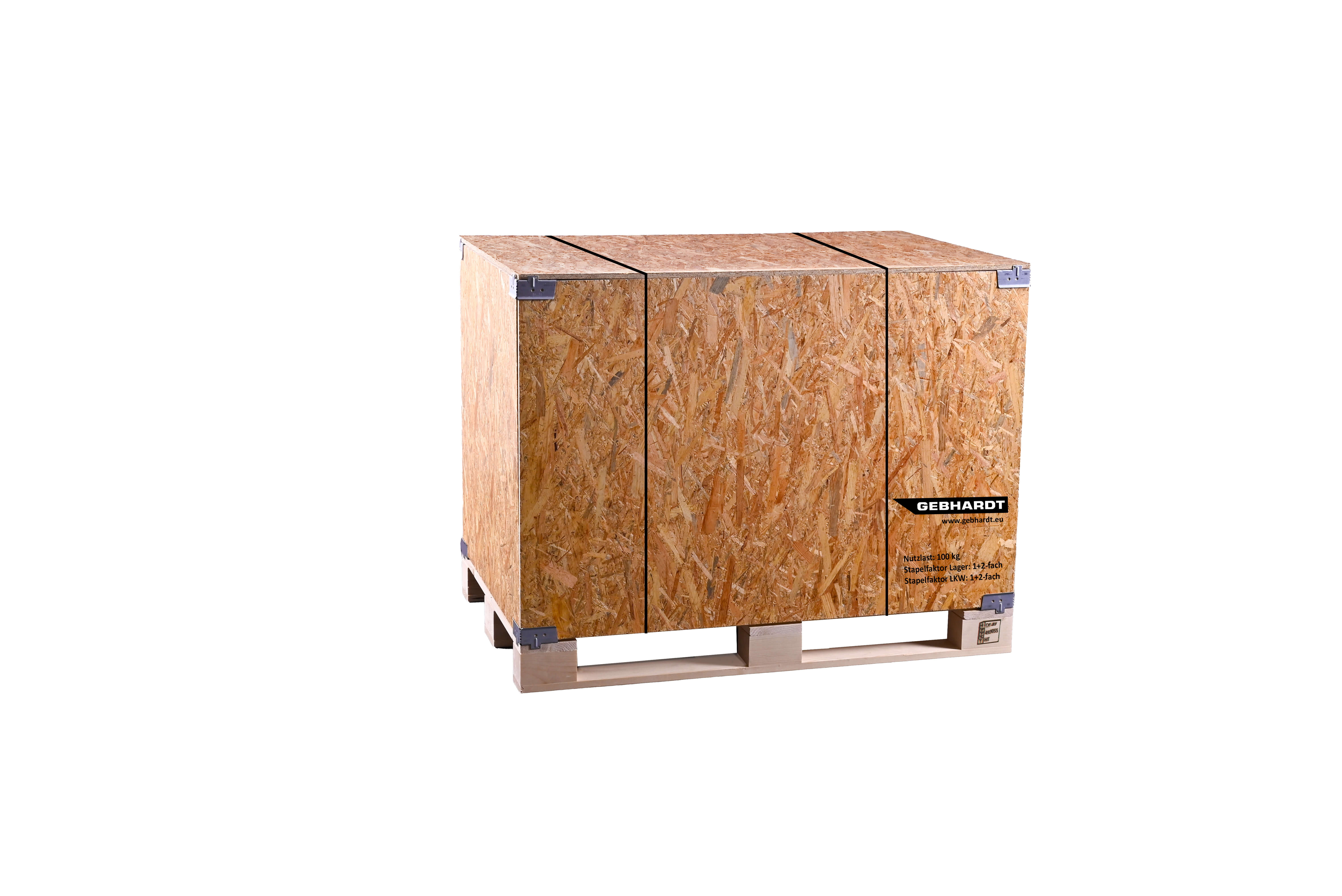

Individual customer labeling possible
Variants of the GEBHARDT plug-in box incl. basic pallet
| Basic dimensions of the 2-way pallet |
Type | External dimensions (LxWxH) |
Internal dimensions (LxWxH) |
Payload | Warehouse stacking | Truck / container stacking | Number: |
|---|---|---|---|---|---|---|---|
| 800 x 600 mm | 1/2 EPAL | 806 x 606 x 600 mm | 776 x 576 x 478 mm | 500 kg | 1 + 2-fold | 1+ 1-fold* | 1061409 |
| 1.140 x 760 mm | 2/3 Cont. Pal | 1.146 x 766 x 761 mm | 1.116 x 736 x 639 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061410 |
| 1.140 x 1.140 mm | 1/1 Cont. Pal | 1.146 x 1.146 x 981 mm | 1.116 x 1.116 x 859 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061412 |
| 1.200 x 800 mm | 1/1 EUR-Pal. | 1.206 x 806 x 909 mm | 1.176 x 776 x 787 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061416 |
| 1.200 x 1.000 mm | 1/1 Ind.-Pal. | 1.206 x 1.006 x 1.000 mm | 1.176 x 976 x 878 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061414 |
| Basic dimensions of the 4-way pallet |
Type | External dimensions (LxWxH) |
Internal dimensions (LxWxH) |
Payload | Warehouse stacking | Truck / container stacking | Number: |
|---|---|---|---|---|---|---|---|
| 1.140 x 760 mm | 2/3 Cont. Pal | 1.146 x 766 x 786 mm | 1.116 x 766 x 639 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061411 |
| 1.140 x 1.140 mm | 1/1 Cont. Pal | 1.146 x 1.146 x 981 mm | 1.116 x 1.116 x 834 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061413 |
| 1.200 x 800 mm | 1/1 EUR-Pal. | 1.206 x 806 x 934 mm | 1.176 x 776 x 787 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061506 |
| 1.200 x 1.000 mm | 1/1 Ind.-Pal. | 1.206 x 1.006 x 1.000 mm | 1.176 x 976 x 853 mm | 1.000 kg | 1 + 2-fold | 1+ 1-fold* | 1061415 |
Variants of the GEBHARDT plug-in box without basic pallet
| Structure for 4-way pallet |
Type | External dimensions (LxWxH) |
Internal dimensions (LxWxH) |
Payload | Warehouse Stacking | Truck/Container Stacking | Number: |
|---|---|---|---|---|---|---|---|
| 1.200 x 800 mm | 1/1 EUR-Pal. | 1.206 x 806 x 962 mm | 1.176 x 776 x 802 mm | 1.000 kg | 1 + 2-fold | 1 + 1-fold | 1061417 |
| Consisting of: | 8 corner connectors, 16 fixing screws, 2 longitudinal walls, 2 end walls and cover |
*The load must be secured appropriately on the base pallet. The truck payload and the DGUV regulations must be observed.
- Pallets in standard design with top surface tightly laid
- Other deck surfaces are also possible upon request
